Best GX Pcp Compressor for Air Rifles options are designed to provide reliable, high-pressure air filling solutions for serious shooters who demand efficiency, durability, and convenience. Whether you are topping off a small PCP rifle cylinder or refilling a larger air tank, choosing a high-quality compressor ensures faster inflation, cleaner air delivery, and safer operation. With advanced cooling systems, accurate pressure control, and dependable motor performance, these compressors eliminate the need for manual pumps and frequent trips to dive shops, giving you greater independence and consistent performance every time you head out to shoot.
Best GX Pcp Compressor for Air Rifles

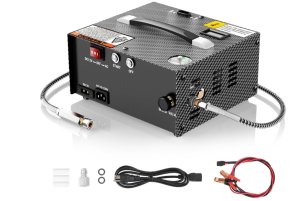

1.GX PUMP PCP Air Compressor CS1-I with Built-in Power Apdater,Auto Stop,Oil & Water-Free,4500Psi/30Mpa,Powered by 110V /220V AC or 12V DC,PCP Compressor Pump for Air Gun and Paintball/Scuba Tank
The GX-E-CS1-I is a compact yet powerful high-pressure PCP air compressor designed specifically for air rifle owners who want convenience, portability, and reliable performance. Delivering up to 320 bar (4500 PSI), this unit is ideal for filling most PCP air rifles, paintball cylinders, and even miniscuba tanks.
Unlike traditional compressors that require messy oil lubrication and water cooling systems, this model features an oil-free and water-free design combined with efficient fan cooling. That means less maintenance, cleaner air output, and easier operation — perfect for beginners and experienced shooters alike.
One of its biggest advantages is versatility. With a built-in DC/AC power converter, you can power it at home using 110V or 220V, or outdoors using a 12V car battery (with the vehicle running). Whether you’re at the range, hunting in the field, or filling tanks in your workshop, this compressor adapts to your needs.
The auto-stop preset pressure feature adds an extra layer of safety and convenience. Simply dial in your desired pressure, and the compressor automatically stops once reached. It also includes a temperature display and protection system that shuts off if the unit overheats, runs continuously for 25 minutes, or reaches 85°C — helping extend the lifespan of the machine.
With a fast inflation rate of 9 liters per minute, it can fill a 0.5L container from 0 to 300 bar in about 20–22 minutes, making it efficient for regular shooters who refill frequently.
Specifications
-
Model: GX-E-CS1-I
-
Power: 250W
-
Working Voltage: AC 110V / 220V or DC 12V-15V
-
Maximum Current: 25A
-
Motor Speed: 2700 r/min
-
Weight: 17.6 lbs (8 kg)
-
Dimensions: 8.9 × 10.5 × 6.1 inches
-
Noise Level: 78 dB
-
Maximum Pressure: 320 Bar (4500 PSI)
-
Air Output: 9 L/min
-
Inflation Speed (0.5L Tank):
-
200 → 300 Bar: 7–8 minutes
-
0 → 300 Bar: 20–22 minutes
-
Pros
-
Auto-stop preset pressure function
-
Oil-free & water-free operation
-
Dual voltage (110V/220V) + 12V car battery compatibility
-
Compact and lightweight (only 8 kg)
-
Built-in temperature display and safety shutoff
-
Clean air output with oil-water separator
-
Fast fill rate for small PCP tanks
Cons
-
Not ideal for filling large scuba tanks frequently

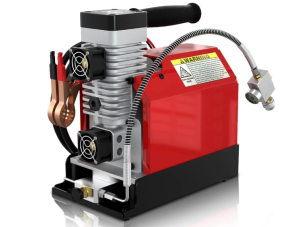

2.GX PUMP GX-E-CS2 Portable PCP Air Compressor, 4500Psi/30Mpa, Oil-Free,Powered by Car 12V DC or Home 110V AC with Converter (Included), Paintball Tank Compressor with Extra Moisture-Oil Separator
the GX CS2 stands out as one of the best options for air rifle users. Designed with patented compression technology and genuine power output, this unit delivers consistent high-pressure performance without the exaggerated specs often seen in competing brands.
GX compressors are known for their authentic 250W power rating, meaning you get the full performance advertised — not a lower real-world output masked behind inflated labels. Even more impressive is GX’s patented compression system (Patent No: US 9,726,165 B2), which incorporates roller bearings at both the top and bottom of the connecting rod. This innovation reduces friction and wear on the rod and wrist pin, significantly extending service life and improving efficiency under high pressure.
The GX CS2 delivers up to 4500 PSI (300 Bar) with a motor speed of 2700 r/min, making it ideal for topping off PCP air rifles and small tanks under 60 cubic inches. In real-world tests:
-
Filling a 0.5L tank from 200 to 300 Bar takes about 8 minutes
-
Filling from 0 to 300 Bar takes approximately 18–20 minutes
That makes it perfect for regular shooters who want quick turnaround times at home or in the field.
Specifications
-
Model: GX CS2
-
Power Output: 250W (Genuine Rated Power)
-
Maximum Pressure: 4500 PSI / 300 Bar
-
Motor Speed: 2700 r/min
-
Recommended Tank Size: Under 60 cubic inches (Not recommended over 1L tanks)
-
Weight: 6.7 kg
-
Compressor Output Nut: M10×1
-
Connector Type: 8mm Quick Connector
-
Cooling System: Built-in Fan Cooling
-
Lubrication: Oil-Free
-
Water Cooling: Not Required
Pros
-
Genuine 250W power output (no exaggerated specs)
-
Patented compression technology for longer lifespan
-
Oil-free and water-free operation
-
Lightweight and highly portable
-
Dual power options (12V car + 110V home AC)
-
Fast inflation for small PCP tanks
-
Includes extra oil-moisture separator
Cons
-
Manual shutdown (no auto-stop feature)

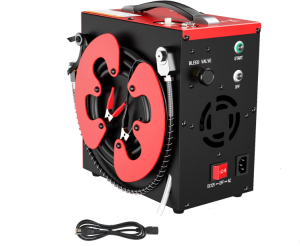

3.GX PUMP GX-E-CS3-I Portable PCP Air Compressor, Built-in Home Converter, Auto-Stop, Oil-Free, Built-in Water-Oil Separator Filter, Powered by 12V DC or Home 110V AC, 4500Psi/30Mpa
The GX CS3-I is one of the most advanced and reliable portable PCP air compressors in the GX lineup. Built with patented compression technology and true-rated power output, this unit is designed for serious air rifle users who want performance, durability, and safety in one compact machine.
Unlike many competitors that exaggerate power ratings, GX compressors deliver genuine performance specifications. More importantly, GX integrates exclusive patented compression technology, featuring roller bearings at both the top and bottom of the connecting rod. This reduces friction, minimizes wear on the rod and wrist pin, and dramatically extends service life — especially under demanding high-pressure conditions.
One of the biggest advantages of the CS3-I is its user-set auto-stop function. Simply dial in your desired pressure, and the compressor automatically shuts off when that pressure is reached. No need to constantly monitor the gauge — the system handles it for you.
The built-in oil-water filter helps remove moisture during the fill process, protecting your PCP rifle or carbon bottle. While it is not a certified filtration system, it provides reliable everyday moisture separation. For enhanced performance, GX recommends adding their professional external filter.
This compressor operates without oil or water cooling, making it cleaner, easier to use, and more cost-efficient over time. The built-in fan cooling system ensures consistent airflow for heat management, while the external power converter design allows for easy replacement if needed in the future.
The duty cycle of 50 minutes running / 20 minutes cooling makes it capable of filling larger tanks (up to 1.5L recommended), provided you allow proper cooling intervals.
Specifications
-
Model: GX CS3-I
-
Maximum Pressure: 4500 PSI / 300 Bar
-
Recommended Tank Size: Up to 1.5L
-
Duty Cycle: 50 minutes run / 20 minutes cool
-
Power Source: 110V Home AC (internal converter)
-
Cooling System: Built-in Fan Cooling
-
Filtration: Built-in Oil-Water Separator
-
Safety Systems: Adjustable Gauge, Safety Valve, Burst Disc
-
Connector Type: 8mm Quick Connector
Pros
-
Patented compression technology for longer lifespan
-
Genuine rated power output
-
Auto-stop pressure setting
-
Built-in oil-water filter
-
3-layer safety protection system
-
Fast inflation speeds
-
Suitable for tanks up to 1.5L
-
Wire spool for neat cable storage
-
Oil-free & water-free operation
Cons
-
Built-in filter not professionally certified

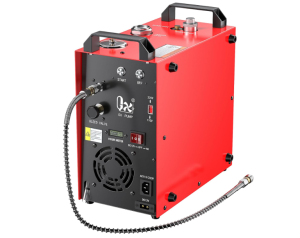

4.GX PUMP GX-E-CS4-I Portable PCP Air Compressor, 350W Powerful Motor,Max 5800Psi/40Mpa, Built-in Home Converter, Water and Fans Cooling, 5 Hours Continous Work, 12V Auto Stop Paintball Air Compressor
The GX CS4-I is a premium high-performance PCP air compressor engineered for serious air rifle enthusiasts who demand stability, speed, and long-duty operation. Unlike many compact “shoebox-style” compressors that simply add basic water circulation, the CS4-I features a true four-stage patented compression system combined with an integrated water-cooled structure powered by a genuine 350W high-performance motor.
The result is exceptional stability under pressure, smoother operation, and remarkably quiet performance at only 70 dB. Designed specifically for PCP airguns and small high-pressure cylinders (up to 6.8L max, recommended smaller), this model stands out as one of GX’s most capable compressors for consistent 4500 PSI filling.
GX integrates an exclusive four-stage compression system that improves efficiency at extreme pressures. The design minimizes stress on internal components, delivering:
-
Enhanced durability
-
Smoother high-pressure performance
-
Better heat management
-
Longer service life
The double-pointer pressure gauge and two-level adjustable auto-stop system add extra safety and precision. You can preset your desired pressure, and the compressor will shut off automatically — reducing the risk of overfilling.
The CS4-I includes a built-in water tank and grease tank mounted on top of the unit, allowing excellent thermal regulation. With proper coolant filling (neutral distilled water or antifreeze where necessary), this compressor can operate up to 5 hours continuously, making it ideal for longer fill sessions.
Specifications
-
Model: GX CS4-I
-
Compression System: Four-stage patented design
-
Motor Power: Genuine 350W
-
Maximum Pressure: 4500 PSI / 300 Bar
-
Cooling System: Integrated water cooling
-
Noise Level: 70 dB
-
Auto-Stop: Two-level adjustable preset system
-
Connector: M10×1, 8mm female quick connector
-
Product Size: 11.8 × 6.1 × 12.4 inches
-
Weight: 29 lbs
-
Recommended Tank Size: Best for PCP and cylinders below 6.8L
Pros
-
Patented four-stage compression system
-
Genuine 350W high-performance motor
-
Integrated water cooling for up to 5 hours continuous use
-
Very quiet operation (70 dB)
-
Two-level auto-stop pressure setting
-
Built-in 110V to 12V converter
-
15% faster filling speed
-
Double-pointer pressure gauge for accuracy
-
Built-in hour meter for maintenance tracking
Cons
-
Requires proper coolant setup before first use
Also read;5 Best Gamo .22 Air Rifle
Factor to Consider when Choosing Best GX Pcp Compressor for Air Rifles
1. Power Output and Motor Quality
The compressor’s power rating and actual motor performance directly impact how efficiently it can build pressure. A genuine rated power output (e.g., true 350W, not just a marketed figure) ensures consistent performance and a longer lifespan. GX compressors are known for delivering real-world power, helping you fill high-pressure tanks more reliably and quickly than compressors with inflated ratings.
2. Compression Technology & Durability
The internal compression system is critical to overall performance and longevity. Patented compression designs — such as multi-stage configuration with roller bearings — allow smoother piston movement with less wear, even under high pressure. This reduces heat and friction, extending the compressor’s service life and ensuring stable performance for regular PCP air rifle refills.
3. Cooling System Efficiency
Efficient cooling prevents overheating during extended use. Some models utilize advanced water-cooling systems, allowing long continuous operation (e.g., many hours) without overheating. Proper cooling helps maintain performance, especially when you’re filling multiple tanks or larger cylinders. A well-designed cooling system also helps protect internal components, improving durability.
4. Auto-Stop Pressure Control
An auto-stop pressure setting enhances convenience and safety. This feature lets you preset the desired pressure, and the compressor automatically stops once that pressure is reached. It eliminates the need to constantly monitor the gauge during fills, reducing operator fatigue and preventing accidental overfilling — a key safety consideration for PCP rifles.
5. Filtration Quality (Oil & Water Management)
Clean, dry air is crucial for protecting the internal mechanisms of your airgun. Compressors with built-in oil-water separators help remove moisture that could otherwise harm seals or degrade performance. While built-in filters are useful, investing in a professional external filter can further improve air quality, especially for frequent or high-precision applications.
6. Inflation Speed and Duty Cycle
How fast a compressor fills your tank affects shooting downtime. Faster fill rates mean less waiting between fills. Look for compressors with high airflow and fast inflation speed, especially if you shoot frequently. The duty cycle (e.g., 50 minutes run / 20 minutes cool) also matters — longer duty cycles allow you to fill larger tanks with fewer interruptions.
7. Portability and Power Source Flexibility
Consider where you plan to use the compressor. Portable models that support both 12V car battery power and 110V household power are ideal for shooting ranges, outdoor hunts, or workshops. Built-in converters simplify power transitions and make the unit more versatile. Smaller, lightweight units are easier to transport but may have lower duty cycles or slower fill rates.
8. Safety Features and Usability
Safety features like double-pointer pressure gauges, safety valves, burst discs, and clear bleed valve procedures help make consistent fills safer. These features aid in pressure monitoring, prevent overpressure conditions, and ensure operators work within safe limits. Usability features like wire spools or integrated hour meters also improve everyday convenience and maintenance tracking.
Frequent Asked Question Best GX Pcp Compressor for Air Rifles
1. What makes a GX PCP compressor better than other air compressors on the market?
Answer:
GX compressors are engineered with genuine specifications and patented technology, so you get the performance you expect on paper and in real use. Unlike some brands that advertise inflated wattage only to deliver less power, GX units deliver their rated output — meaning more reliable filling power and faster inflation times. Many models also feature exclusive compression designs (e.g., multi-stage compression with roller bearings), enhanced cooling systems, and safety features like auto-stop settings and dual pressure gauges. These design advantages translate into longer service life, smoother operation under high pressure, and greater overall reliability for regular PCP air rifle users.
2. How important is the compressor’s power source and portability?
Answer:
The power source and portability directly affect where and how you can use the compressor. Many GX PCP compressors offer dual power options, such as a built-in AC/DC converter that lets you run the unit from a standard household outlet (110V) or a 12V car battery, making them versatile for both workshop use and field trips. If you often shoot outdoors or want to top off tanks at the range, having a portable compressor that runs from a car battery adds convenience. More powerful compressors with built-in converters tend to be heavier but offer greater flexibility, while compact models sacrifice less power for easier transport.
3. Can I use a GX compressor to fill large scuba tanks, or is it only for air rifles?
Answer:
Most GX compressors are optimized for PCP air rifles and smaller high-pressure cylinders (typically up to around 1.5 L to 6.8 L depending on the model). They’re designed to fill these safely and efficiently, with duty cycles and cooling systems suited for repeated refills. While some larger GX units can handle bigger bottles, using them outside their recommended tank size may reduce compressor life or require longer cooling intervals. For frequent filling of large scuba cylinders, GX suggests looking at their larger industrial models (e.g., 5K1/5K2 series) that are built to handle higher volumes and longer continuous operation. Always check your compressor’s specifications and duty cycle before attempting to fill large tanks.
Conclusion
Choosing the right PCP compressor ultimately comes down to matching performance, reliability, and safety features with your specific shooting needs. By focusing on factors such as motor power, cooling efficiency, filtration quality, portability, duty cycle, and built-in safety systems, you can ensure consistent, clean, and efficient fills for your air rifle. A well-selected compressor not only improves convenience at home or in the field but also protects your equipment and extends its lifespan. Taking the time to evaluate these essential features will help you make a confident, long-term investment that enhances your overall shooting experience.
