5 Best Carbon Fiber Cylinder Tanks for Air Rifles

Best Carbon Fiber Cylinder Tanks for Air Rifles offer a reliable, lightweight, and high-pressure air source essential for powering PCP (Pre-Charged Pneumatic) airguns. These tanks are engineered with advanced composite materials—typically a carbon fiber wrap over an aluminum liner—to provide exceptional strength while minimizing weight. Whether you’re a target shooter, hunter, or competitive marksman, choosing the right carbon fiber tank ensures consistent performance, multiple refills, and ease of transport. With factors like pressure rating, capacity, safety certification, and valve compatibility all playing key roles, the right tank can significantly enhance your shooting experience while maintaining safety and efficiency.

Best Carbon Fiber Cylinder Tanks for Air Rifles

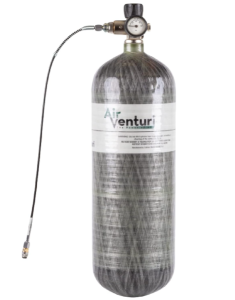

1.Air Venturi Wingman PCP Refill Tanks







The Air Venturi Wingman PCP Refill Tanks are premium, high-pressure carbon fiber cylinders designed specifically to keep your pre-charged pneumatic (PCP) airguns topped off and ready for action. Whether you’re pest hunting, plinking at the range, or competing in precision shooting, these tanks deliver unmatched portability, power, and practicality.

Constructed with carbon fiber filament wound over an aluminum bladder, the Wingman tanks offer a lightweight yet rugged solution for mobile or home airgun charging. Unlike bulky steel scuba tanks, the Wingman series weighs considerably less while offering a maximum pressure of 4,500 psi (310 bar) — more than enough to handle most modern PCP rifles and pistols.

Available in 74 cu. ft. (Wingman 74) and 98 cu. ft. (Wingman 98) sizes, each tank supports dozens of refills before needing a recharge, making them ideal for field days or competition use. For instance, the Wingman 74 can offer 30+ partial fills or over 15 full fills on a 3,000 psi gun with a 215cc reservoir.

Each Air Venturi Wingman tank comes fully equipped and ready for airgun use. The included charging station features:

• DIN 300 bar valve with a burst disc for safety

• Inline pressure gauge (0–6000 psi) for real-time monitoring

• 24-inch microbore hose with 1/8-inch BSPP threaded ends

• Stainless-steel female quick-disconnect coupling

• Rubberized hand wheel for smooth and precise flow control

• Bleed valve conveniently positioned on the main valve

• Test plug included to check remaining tank pressure

Additionally, both the 74 and 98 cu. ft. models are DOT-approved and certified for a 15-year lifespan under DOT-SP 11194. This greatly exceeds the typical 5-year certification offered by CE-only tanks.

Specifications

Pros

• Lightweight and portable compared to steel scuba tanks

• High fill pressure (4,500 psi) ideal for all modern PCP airguns

• Long tank lifespan with DOT approval (15 years)

• Comes complete with hose, gauge, and quick-disconnect fittings

• Multiple fill capacity – up to 30+ fills on mid-sized PCP guns

• Rubberized hand wheel ensures easy and safe air control

• Integrated burst disc and test plug for safety and pressure monitoring

 Cons

• Higher initial cost than smaller or aluminum tanks

• Requires 4,500 psi compressor or fill station, which can be costly

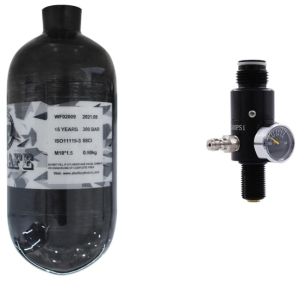

2.Daystate 9L Carbon Fiber Charging Cylinder





When portability meets performance, the result is the Tuxing 68Ci/4500Psi LITE Carbon Fiber HPA Tank. Built for demanding air rifle users and outdoor enthusiasts, this compact high-pressure air (HPA) cylinder offers exceptional fill capability in a featherweight form factor. Whether you’re shooting a Daystate, FX, or other top-tier PCP air rifles, this tank is a reliable refill source that travels as hard as you do.

 Key Features

The Tuxing 68Ci tank is engineered using a 6061 aluminum alloy liner wrapped in high-strength carbon fiber and glass fiber, achieving an ideal balance of durability and lightweight design. Weighing just 0.9 kg (under 2 lbs), it is one of the lightest tanks in its class, making it perfect for fieldwork, backpacking hunts, or extended competition days.

Rated for a working pressure of 4500 psi (300 bar), and tested up to 500 bar hydrostatic pressure, this tank meets CE certification standards and boasts a 15-year service life with a 3-year inspection cycle.

The integrated 2200 psi output regulator ensures consistent, safe fills directly into your airgun — a perfect match for rifles that benefit from regulated fills.

Complete and Practical PCP Airgun Companion

This tank is ready for immediate use with any PCP setup, featuring:

• Regulator Valve Outlet set at 2200 psi for consistent performance

• M18x1.5-6H threaded neck for compatibility with many air systems

• Straight-thread design for easy and secure connection

• High-quality valve and fittings for safety and longevity

In addition to airgun use, it has wide versatility: from paintball, diving, and emergency escape to fire rescue and clean energy systems.

Specifications

Pros

• Ultra-lightweight and compact – under 2 lbs dry weight

• High working pressure (4500 psi) supports most PCP air rifles

• Built-in 2200 psi regulator simplifies and secures air transfer

• Wide range of applications beyond PCP – diving, rescue, paintball, more

• Durable construction with long 15-year life cycle

• Budget-friendly compared to larger SCBA tanks

• Ideal for Daystate, FX, and other premium rifles

Cons

• CE certified only – not DOT approved (may limit refill station options in the USA)

• Lower air volume (68Ci) means fewer fills than 74–98 cu. ft. tanks

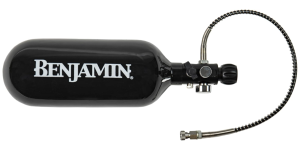

3.Benjamin 90 cu ft Carbon Fiber Tank







When it comes to portable, high-performance air delivery systems for PCP air rifles and pistols, the Benjamin 90 cu in Carbon Fiber Tank stands out as a top-tier choice. Combining reliability, safety, and convenience in a rugged design, this charging cylinder is tailor-made for shooters who value mobility without sacrificing performance.

The Benjamin 90 cu in tank is DOT-certified and built to safely hold up to 4500 psi of compressed air—plenty of pressure for multiple refills on the go. Constructed from lightweight carbon fiber, this tank is designed with field use in mind. At just under 5 pounds and measuring 15 inches long with a 4-inch diameter, it fits comfortably in a backpack or shooting bag, making it ideal for hunters or airgunners needing all-day performance away from the shop or garage.

Benjamin doesn’t skimp on functionality. The tank is equipped with a built-in pressure gauge, bleed valve, and a 12-inch microbore hose with a stainless steel fill connection, allowing for smooth and precise transfers of air. A grippy hand wheel ensures controlled filling of your airgun with less risk of overfilling or damage to the equipment. Best of all, it is fully compatible with most Benjamin PCP rifles, pistols, and the innovative Airbow.

Key Specifications

• Volume: 90 cubic inches (approx. 1.5 liters)

• Max Pressure: 4500 psi (310 bar)

• Weight: Under 5 lbs (approx. 2.2 kg)

• Length: 15 inches

• Diameter: 4 inches

• Hose: 12-inch microbore hose with stainless steel fittings

• Certifications: DOT approved

Pros

• Lightweight and Portable – Easy to carry in a backpack; perfect for field use.

• High Pressure Capacity – Rated at 4500 psi for multiple fills.

• Complete Fill System – Includes gauge, bleed valve, and microbore hose.

• Durable Build – Carbon fiber body with stainless steel fittings.

• Brand Compatibility – Optimized for use with Benjamin PCP products.

• Excellent Safety Features – DOT certification and controlled fill design.

Cons

• Limited Fill Capacity Compared to Larger Tanks – Best suited for short trips or single-day use.

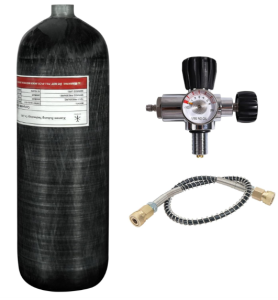

4. Daystate Carbon Fiber Tank 4.5L







the Daystate Carbon Fiber Tank (6.8L)—manufactured by Tuxing—delivers exceptional performance. With its robust build, high-pressure rating, and modern composite materials, this tank is an excellent choice for filling PCP (Pre-Charged Pneumatic) air rifles, offering both field usability and long-term durability.

The Daystate 6.8L carbon fiber cylinder is engineered with state-of-the-art composite technology, combining a 6061 aluminum alloy liner with a high-strength carbon fiber and glass fiber winding. This multilayered construction ensures resistance to impact, corrosion, and high pressure, while significantly reducing weight—up to 70% lighter than traditional steel cylinders.

Certified for 300 BAR working pressure (approx. 4500 PSI), this tank offers ample air capacity for multiple rifle fills, making it an ideal tool for field shooters, competition marksmen, or anyone needing a dependable fill source. The epoxy-coated exterior adds another layer of protection against environmental wear and tear, while its M18x1.5 straight thread bottle mouth ensures wide compatibility with high-pressure valve and regulator systems.

Key Specifications

• Brand: Tuxing (Marketed under Daystate branding in some regions)

• Actual Volume: 6.8 Liters

• Weight: 6.5 kg (approx. 14.3 lbs)

• Working Pressure: 300 BAR (4500 PSI)

• Hydraulic Test Pressure: 500 BAR (7250 PSI)

• Burst Pressure: 102 MPa (14,800 PSI)

• Thread Type: M18x1.5 (Straight thread)

• Liner Material: 6061 Aluminum Alloy

• Wrap Material: Carbon Fiber + Glass Fiber

• Coating: Epoxy surface treatment

• Service Life: 15 years (retest every 3 years)

• Certification: CE Approved (Not DOT certified)

Pros

• High Capacity – 6.8L size is great for repeated PCP refills without recharging.

• Extremely Durable – Multi-layered carbon and glass fiber shell resists impact, corrosion, and pressure stress.

• Lightweight Design – Up to 70% lighter than comparable steel tanks.

• High Safety Ratings – 500 BAR hydro test and 102 MPa burst pressure ensure peace of mind.

• Long Service Life – Designed for 15 years of use with 3-year retesting intervals.

• Versatile Application – Suitable for PCP rifles, paintball, diving, medical, and industrial uses.

Cons

• Not DOT Certified – Not legally usable in the U.S. for certain applications (e.g., transport in vehicles or aircraft).

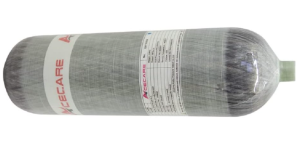

5. Acecare 6.8L CF Cylinder



The Acecare 6.8L Carbon Fiber HPA Cylinder is a high-performance air tank that stands out in the world of PCP air rifle accessories. Combining military-grade build quality, lightweight materials, and a 4500 PSI working pressure, this carbon fiber tank offers serious reliability and portability for shooters, divers, and professionals alike. With CE/EN12245 certification and robust pressure handling, it’s one of the best value-for-performance carbon fiber air tanks available today.

Crafted from imported carbon fiber and AL6061 aluminum alloy, the Acecare 6.8L cylinder uses a full-wrapped composite design that maximizes strength without adding weight. This structure not only allows for a high working pressure of 4500 PSI (30 MPa), but also keeps the empty weight to just 3.9 kg (8.6 lbs)—making it incredibly portable for its size. At just over 20 inches long and 6 inches in diameter, it fits easily into a gear bag or backpack for range or field use.

The seamless filament winding design and grooved sealing ring enhance safety and sealing reliability under pressure. Acecare’s focus on quality control and material integrity—meeting European CE/EN12245 standards—ensures the tank is ready for a range of uses: from PCP air rifle fills to SCUBA diving, paintball, or emergency escape breathing systems (EEBD/SCBA).

Key Specifications

• Product Name: HPA Compressed Air Tank

• Water Capacity: 6.8 Liters

• Working Pressure: 4500 PSI (30 MPa)

• Test Pressure: 7500 PSI (50 MPa)

• Certification: CE / EN12245 (Approved by ECM)

• Re-test Interval: Every 5 years

• Material: Imported Carbon Fiber & AL6061 Aluminum Liner

• Thread Size: M18 × 1.5

• Empty Weight: 3.9 kg (8.6 lbs)

• Length: 533 mm (20.98 in)

• Diameter: 157 mm (6.19 in)

• Main Applications: PCP air rifles, Paintball, SCUBA, SCBA, EEBD

Pros

• Lightweight Design – Just 8.6 lbs for a 6.8L tank; easy to carry in the field.

• High Pressure Capacity – 4500 PSI working pressure is ideal for multiple PCP fills.

• Versatile Usage – Approved for use in airgun, diving, paintball, and safety industries.

• Military-Grade Quality – Excellent material strength and manufacturing process.

• Certified Safety – CE/EN12245 compliance ensures reliability and regulatory approval.

• Seamless & Durable – Filament-wound carbon fiber shell offers impact and wear resistance.

Cons

• Valve May Be Sold Separately – Some versions ship without a valve/hose, requiring extra purchase.

Also read;5 Best Air Rifle Cleaning Kits

Factors to Consider when Choosing Best Carbon Fiber Cylinder Tanks for Air Rifles

1. Tank Capacity (Volume)

The capacity of a carbon fiber air tank, typically measured in liters (L) or cubic inches (ci), determines how many refills you can get for your PCP air rifle before needing to recharge the tank. For field use or occasional shooting, a smaller tank like 4.5L may suffice, offering lightweight convenience. However, for extended range sessions or multiple rifles, a larger tank such as 6.8L or 9L will provide significantly more fills, reducing the need for frequent refills and offering better long-term convenience.

2. Working Pressure Rating

The working pressure, commonly 300 BAR (4500 PSI), is crucial because it defines how much air the tank can safely store. Higher pressure ratings allow for more air storage in the same volume, giving more refills per fill cycle. Always ensure your air rifle and filling equipment are compatible with the tank’s pressure. A high working pressure tank also means a longer usage period between refills, which is especially useful for competitive shooters or hunters who spend long hours in the field.

3. Material and Build Quality

Carbon fiber tanks use a composite construction that typically includes an aluminum liner wrapped in carbon fiber and often glass fiber for added durability. The quality of these materials significantly affects the tank’s safety, longevity, and weight. Tanks made with high-grade carbon fiber and AL6061 aluminum alloy liners, like those from Acecare or Tuxing, offer superior impact resistance, corrosion protection, and reliable pressure retention. A well-constructed tank ensures both performance and safety during high-pressure use.

4. Weight and Portability

Weight is a key consideration, especially for field use. One of the biggest advantages of carbon fiber over traditional steel tanks is weight reduction—carbon fiber tanks can be up to 70% lighter. A tank weighing under 5 kg (11 lbs) is ideal for mobile use, fitting easily in a backpack or range bag. Lightweight tanks are essential for hunters or shooters who frequently move between locations and need gear that won’t slow them down.

5. Certification and Safety Standards

Always check whether the tank is CE, EN12245, or DOT certified. These certifications ensure the tank has passed rigorous safety and performance tests. European CE-certified tanks are suitable for most users globally, while DOT certification is essential if you plan to transport your tank across state lines or in vehicles in the United States. Choosing a certified tank means you’re investing in a product that meets international safety standards, reducing risk during use and filling.

6. Valve and Thread Compatibility

The thread size and valve type (typically M18x1.5) should be compatible with your fill system and air rifle. Some tanks include a built-in valve, bleed valve, and gauge, while others require separate purchases. Compatibility with DIN or SCBA valve fittings is also important depending on your fill source (compressor or scuba tank). Make sure the tank setup matches your existing gear to avoid needing additional adapters or risking an improper fit that could lead to leaks or unsafe fills.

7. Retest Interval and Service Life

Most high-quality carbon fiber tanks have a design service life of 15 years, with a retest interval of 3 to 5 years depending on the certification and local regulations. This means the tank must be pressure-tested periodically to ensure continued safety. A longer retest interval saves maintenance time and cost, while a long service life ensures a good return on investment. Always check these timelines before purchasing to avoid unexpected compliance issues later.

8. Intended Use and Versatility

While your primary use may be for PCP air rifles, many tanks are designed for multiple applications like paintball, scuba diving, emergency breathing systems (SCBA/EEBD), or industrial use. Choosing a versatile tank expands its value, especially if you participate in other air-driven hobbies. Versatile tanks are also more likely to have widespread compatibility with different hoses, valves, and regulators, giving you more flexibility across different gear and environments

Frequent Asked Question Best Carbon Fiber Cylinder Tanks for Air Rifles

1. What size carbon fiber tank should I get for my PCP air rifle?

The ideal size of your carbon fiber tank depends on how often you shoot and whether you’re using it in the field or at a fixed location like a range. Smaller tanks (like 4.5L or 90ci) are lightweight and more portable—perfect for carrying in a backpack during a day of hunting. Larger tanks (6.8L or 9L) offer more air capacity, allowing you to refill your PCP rifle multiple times without needing to recharge the tank itself, which is ideal for benchrest shooting or extended range sessions. If you’re unsure, a 6.8L tank offers a great balance between capacity and portability for most airgunners.

2. Are carbon fiber tanks safe to use at 4500 PSI?

Yes, carbon fiber tanks that are properly manufactured and certified (e.g., CE, EN12245, DOT) are specifically designed to handle high pressures—typically up to 4500 PSI (300 BAR). They are constructed with a high-strength aluminum liner wrapped in carbon fiber and glass fiber for maximum durability and burst resistance. These tanks undergo rigorous testing, including hydrostatic pressure tests of up to 7500 PSI or more. As long as the tank is used within its specified pressure limits, periodically retested, and maintained properly, it is very safe to use at 4500 PSI.

3. Can I use the same carbon fiber tank for other applications like paintball or scuba?

Yes, many high-quality carbon fiber tanks are versatile and can be used for multiple applications, such as paintball,SCUBA diving, emergency breathing systems (SCBA/EEBD), and industrial air tools—as long as the valve fittings and certifications meet the requirements for those uses. For instance, a CE-certified tank with an M18x1.5 thread and high-pressure rating can work across several air-based systems. However, it’s essential to verify the certification requirements in your country and the compatibility with the specific regulators or fill systems used in other activities. Some applications, like scuba, may require DOT certification in the U.S. or different valve types.

Conclusion

In conclusion, selecting the best carbon fiber cylinder tank for air rifles involves balancing performance, safety, and portability to match your specific shooting needs. High-quality tanks offer lightweight construction, high-pressure capacity, and long service life—making them ideal for both field use and extended range sessions. By considering key factors such as capacity, working pressure, material quality, certifications, and intended applications, you can invest in a tank that delivers reliable air supply, enhances your overall shooting efficiency, and ensures safe, long-term use. A well-chosen carbon fiber tank is not just a convenience—it’s a critical component in maximizing the performance of your PCP air rifle setup
